New Garmin GPSMAP 8417 MFD With Worldwide Basemap - Sale !!

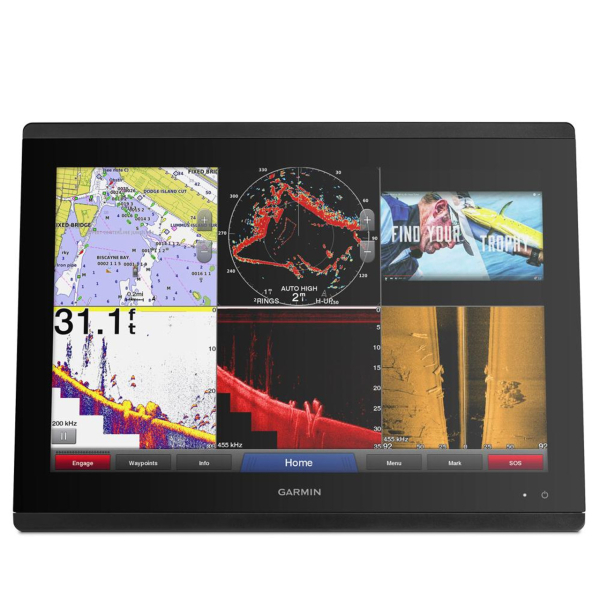

GPSMAP 8417 large-format multifunction display features a 17-inch full HD screen with touch control. Sunlight-readable, anti-glare display is exceptionally easy to view and also includes auto-dimming feature for use in low light or at night. The maximum glass design enables you to experience a beautifully powerful, completely networked helm at your fingertips. In-plane switching (IPS) LCD display - an industry first for this class - provides consistent, accurate colors from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems. Install multiple displays with the industry's lowest flush-mount profile or flat mount them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the information you need makes boating easier.
$2,209.00
Qty:
SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

Navigate confidently with built-in Garmin Navionics ™ inland and coastal mapping1.

Easily build your marine system using the best of network connectivity.

See below and around your boat with built-in sonar capabilities (transducers sold separately).

From ANT technology to Wi-Fi networking, there are countless ways to connect to your system.

With SmartMode station controls, everything is designed to give you quick, one-touch access to the information you need.

Made for your helm

HD IPS TOUCHSCREEN
Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS
You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID 20 REMOTE CONTROL
The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

See the world below.

TRADITIONAL AND SCANNING SONAR SUPPORT
Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).

LIVE SONAR SUPPORT
Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

PRELOADED MAPPING
Experience unparalleled coverage and detail with built-in Garmin Navionics  integrated coastal and inland mapping that includes Auto Guidance ™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.

OPTIONAL CHARTS AND MAPS
Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision ™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Connect to everything on your boat.

GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000 AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.

INTEGRATED BLUETOOTH AND ANT TECHNOLOGIES
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

ONEHELM FEATURE
This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

SEND INREACH DEVICE MESSAGES
Pair your inReach satellite communicator5 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

SPECS :

General

DIMENSION   16.5" x 12.1" x 2.8" (41.9 cm x 30.7 cm x 7.1 cm)
TOUCHSCREEN
DISPLAY SIZE    14.4" x 9.1"; 17.0" diagonal, 36.6 cm x 23.1 cm; 43.2 cm diagonal
DISPLAY RESOLUTION    1920 x 1200 pixels
DISPLAY TYPE    FHD, IPS
WEIGHT    11.48 lbs (5.21 kg)
WATERPROOF    IPX7
MOUNTING OPTIONS    Flush or flat

Maps & Memory
ACCEPTS DATA CARDS     2 SD Cards (with Garmin SD card reader accesory)
WAYPOINTS    5000
TRACK POINTS    50,000
TRACKS    50 saved tracks
NAVIGATION ROUTES    100

Sensors
NMEA 2000 COMPATIBLE
NMEA 0183 COMPATIBLE

Built-in Maps
TIDE TABLES

Optional Map Support
BLUECHART G3
BLUECHART G3 VISION
LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS ™
GARMIN NAVIONICS VISION ™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
RASTER CHART SUPPORT

Chartplotter Features
SMART MODE COMPATIBLE
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
GSD BLACK BOX SONAR SUPPORT
GCV BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN® COMPATIBLE
yes
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
WIRELESS REMOTE COMPATIBLE
SAILING FEATURES
SPOKEN AUDIO ALERTS
ONEHELM SUPPORT

Sonar Features & Specifications
DISPLAYS SONAR
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)    Yes (with external black box, sold separately)
CLEARVÜ    yes (with GCV™ black box, sold separately)
SIDEVÜ    yes (with compatible black box sonar)
PANOPTIX™ SONAR
LIVESCOPE

Connections
NMEA 2000 PORTS    1
CONNECTIONS NMEA0183 INPUT PORTS    4

NMEA 0183 INPUT (TX) PORTS    2

VIDEO INPUT PORTS    1 (BNC composite); 1 HDMI (HDCP compliant)

VIDEO OUTPUT PORTS    1 HDMI

J1939 PORTS    1
GARMIN MARINE NETWORK PORTS    4

USB PORTS
BLUETOOTH® PAIRING

ANT (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)

Electrical Features
POWER INPUT    10-35 Vdc
TYPICAL CURRENT DRAW AT 12 VDC    2.8 A
MAXIMUM CURRENT DRAW AT 12 VDC    3.5 A
MAXIMUM POWER USAGE AT 10 VDC    40W

In The Box :

GPSMAP 8417
Trim piece snap covers
GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
Protective cover
Flush mount hardware
Power cable
NMEA 2000 2 m backbone/drop cable
NMEA 2000 6 m backbone cable
NMEA 2000 power cable
NMEA 2000 T-connector & terminator kit
Documentation
